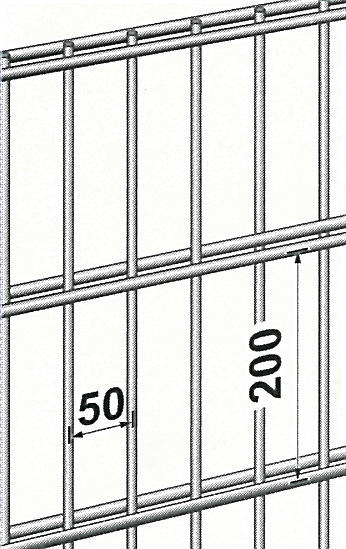

Doppelstabmatten*
aus runden Stahlstäben
Maschenweite 50 x 200 mm
Breite ca. mm
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
Höhe ca. mm
630
830
1030
1230
1430
1630
1830
2030
2230
2430
Gewicht ca. kg
13,4
17,1
20,9
24,6
28,4
32,1
35,9
39,6
43,4
47,2
- waagrechte Stäbe doppelt verlaufend, ca. 8 mmm Durchmesser
- senkrechte Stäbe ca. 6 mmm Durchmesser
- Stäbe an den Kreuzpunkten verschweißt

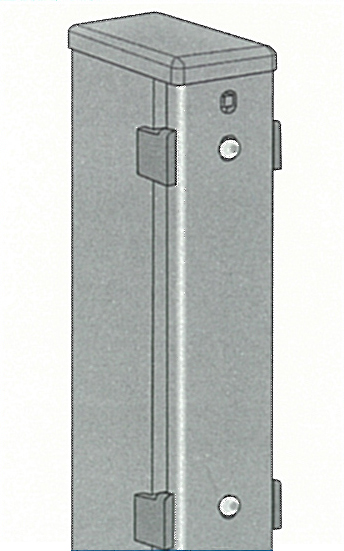

Profilrohrpfähle*
für Doppelstabmatten aus Rechteckrohren
60 x 40 x 2 mm
Gesamtlänge ca. mm
1000
1200
1500
1750
2000
2250
2400
2600
2800
3000
Mattenhöhe ca. mm
630
830
1030
1230
1430
1630
1830
2030
2230
2430
Auflageböcke Stück
3
3
4
4
5
5
6
6
7
7
Gewicht ca. kg
4,0
4,7
5,9
6,9
7,9
8,9
9,6
10,4
11,3
12,1
- Lieferumfang komplett mit Profilschiene und Schrauben
- geschnitten und gebohrt aus feuerverzinkten Stahlrohren
- Profilschienen: 40/9 mm mit Langlöchern
- Auflageböcke aus Kunststoff, mit Gewindehülsen M8 montiert

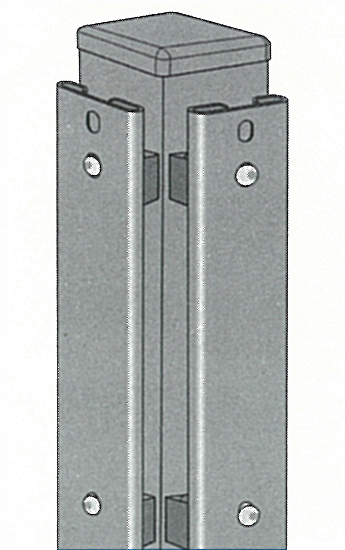

Eck- Profilrohrpfähle*
für Doppelstabmatten aus Rechteckrohren
60 x 40 x 2 mm
Gesamtlänge ca. mm
1000
1200
1500
1750
2000
2250
2400
2600
2800
3000
Mattenhöhe ca. mm
630
830
1030
1230
1430
1630
1830
2030
2230
2430
Auflageböcke Stück
2x3
2x3
2x4
2x4
2x5
2x5
2x6
2x6
2x7
2x7
Gewicht ca. kg
5,3
6,4
8,1
9,4
10,8
12,1
13,2
14,3
15,5
16,6
- Eckpfähle: für 90°-Ecken
- Auflageböcke 2-seitig montiert mit 2 Stück Profilschienen und Schrauben
